Orientations are noted with the thumbnails to the right.

Passive solar design refers to the use of the sun's energy to heat and cool the living spaces in a home, utilizing the southern exposure to allow the sun to enter the home during the winter and warm it's interior.

Universal Design Plans

Plan Details:

Size fl 1: 880 sq ft
Size fl 2: 478 sq ft
Size total: 1358 sq ft
Width: 18'-0"
Depth: 48'-0"
Porch: 8 ft
Fl 1 ceiling: 9'
Fl 2 ceiling: 9'
Roof Pitch: 8/12
Height: 26'-4"
Stories: 1.5
Foundation: Crawl, Slab or Basement
Bedrooms: 3
Master BR: down
Office: No
In-Law: No
View: Front & side
Prints (5): $775.00
PDF Single: $800
PDF Multi: $950
CAD Files: $1,275.00
Material list: $75.00

download printable PDF

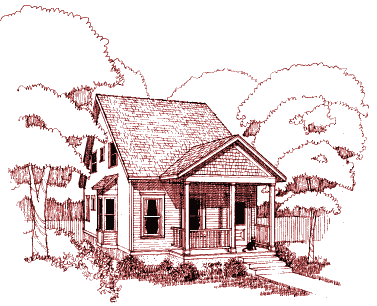

house plan 1317A

previous
next
  • floorplan
    & comments
  • order
    plan
Floorplan Image for Plan 1317A

The bay at the dining room is cantilevered. The footprint is 18' wide, but the actual structure is 20' including the bay.

Plan Packages & Options Price Add
[info] 775.00
[info] 800.00
[info] 950.00
[info] 1,275.00
[download sample] 75.00
[info] $75.00
