This list of plans will grow considerably over the next several months and will later be separated by orientation, but in the meantime, please use the link below to browse what's available.
Orientations are noted with the thumbnails to the right.
Passive solar design refers to the use of the sun's energy to heat and cool the living spaces in a home, utilizing the southern exposure to allow the sun to enter the home during the winter and warm it's interior.
Plan Details:
| Size fl 1: | 830 sq ft |
|---|---|
| Size fl 2: | 393 sq ft |
| Size total: | 1223 sq ft |
| Width: | 24Õ'-0" |
| Depth: | 34'-0" |
| Porch: | 5 ft |
| Fl 1 ceiling: | 8' |
| Fl 2 ceiling: | Vaulted |
| Roof Pitch: | 9/12 |
| Height: | 22' |
| Stories: | 1.5 |
| Foundation: | Crawl, Slab or Basement |
| Bedrooms: | 3 |
| Master BR: | up |
| Office: | No |
| In-Law: | No |
| View: | Front & rear |
| Study Set: | $500.00 |
| Prints (5): | $600.00 |
| Prints (8): | $650.00 |
| Reproducibles: | $725.00 |
| Material list: | $75.00 |
| CAD Files: | $1,100.00 |
house plan 1104A
- floorplan
& comments - order
plan

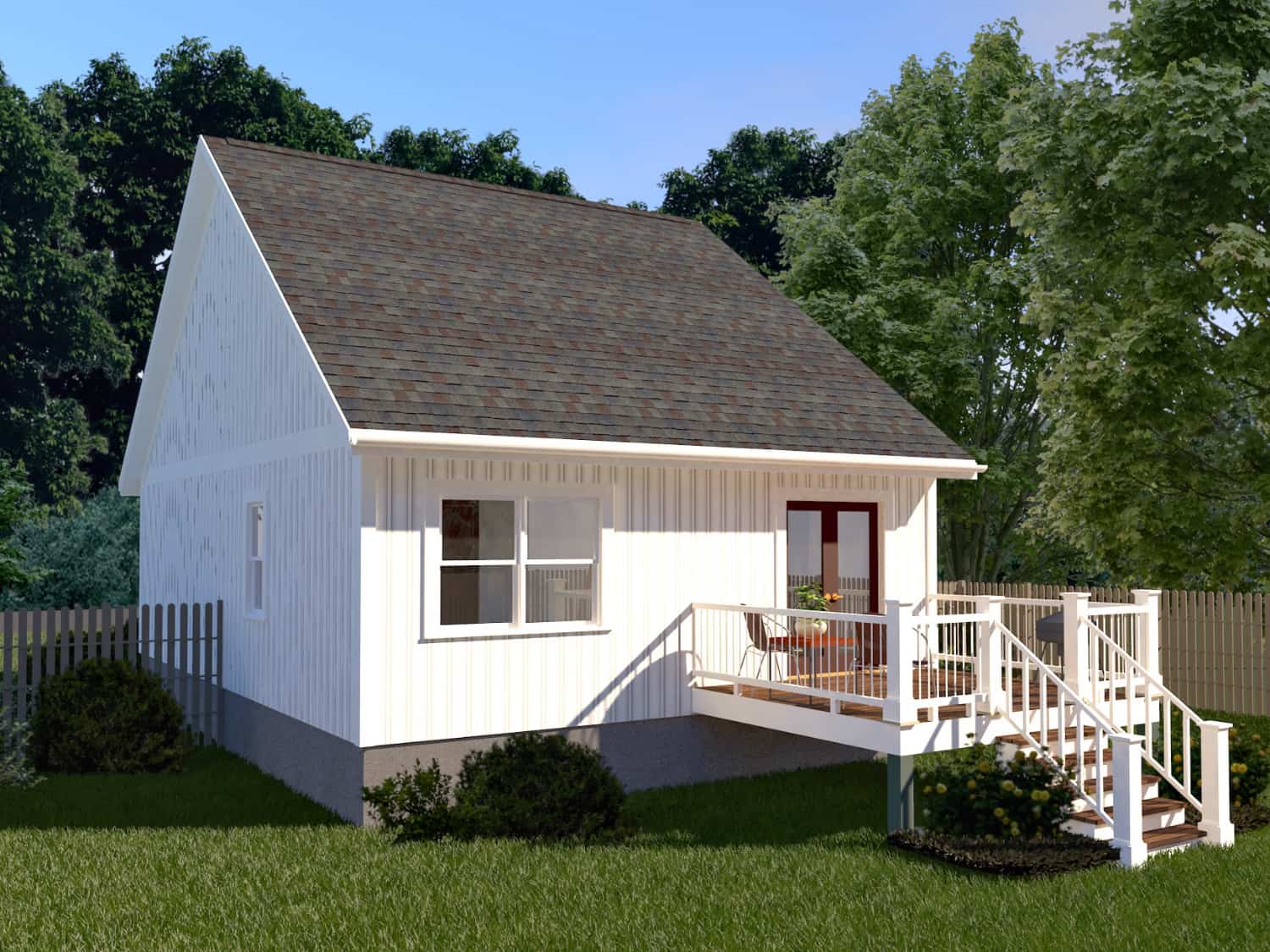

The kitchen projection is cantilevered. The footprint is 24' wide, but the actual structure is 25'-6".
