This list of plans will grow considerably over the next several months and will later be separated by orientation, but in the meantime, please use the link below to browse what's available.
Orientations are noted with the thumbnails to the right.
Passive solar design refers to the use of the sun's energy to heat and cool the living spaces in a home, utilizing the southern exposure to allow the sun to enter the home during the winter and warm it's interior.
Plan Details:
| Size fl 1: | 1152 sq ft |
|---|---|
| Size total: | 1152 sq ft |
| Width: | 26' + 1'-10" bay |
| Depth: | 50'-6" |
| Porch: | 6 ft |
| Fl 1 ceiling: | 8' or 9' |
| Roof Pitch: | 9/12 |
| Height: | 19' |
| Stories: | 1 |
| Foundation: | Crawl, Slab or Basement |
| Bedrooms: | 3 |
| Master BR: | down |
| Office: | No |
| In-Law: | No |
| View: | Front & rear |
| Study Set: | $575.00 |
| Prints (5): | $675.00 |
| Prints (8): | $725.00 |
| Reproducibles: | $800.00 |
| Material list: | $75.00 |
| CAD Files: | $1,175.00 |

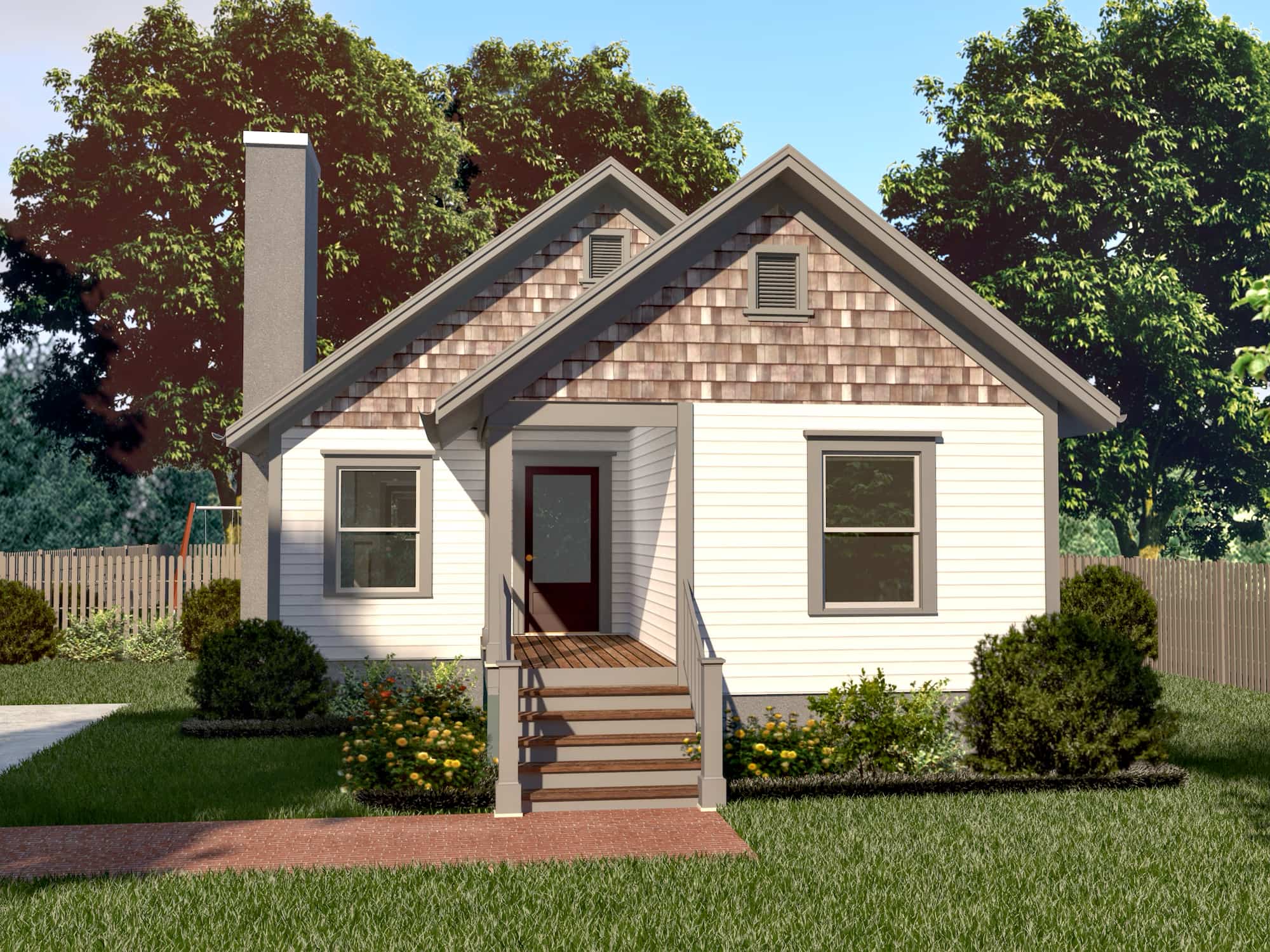

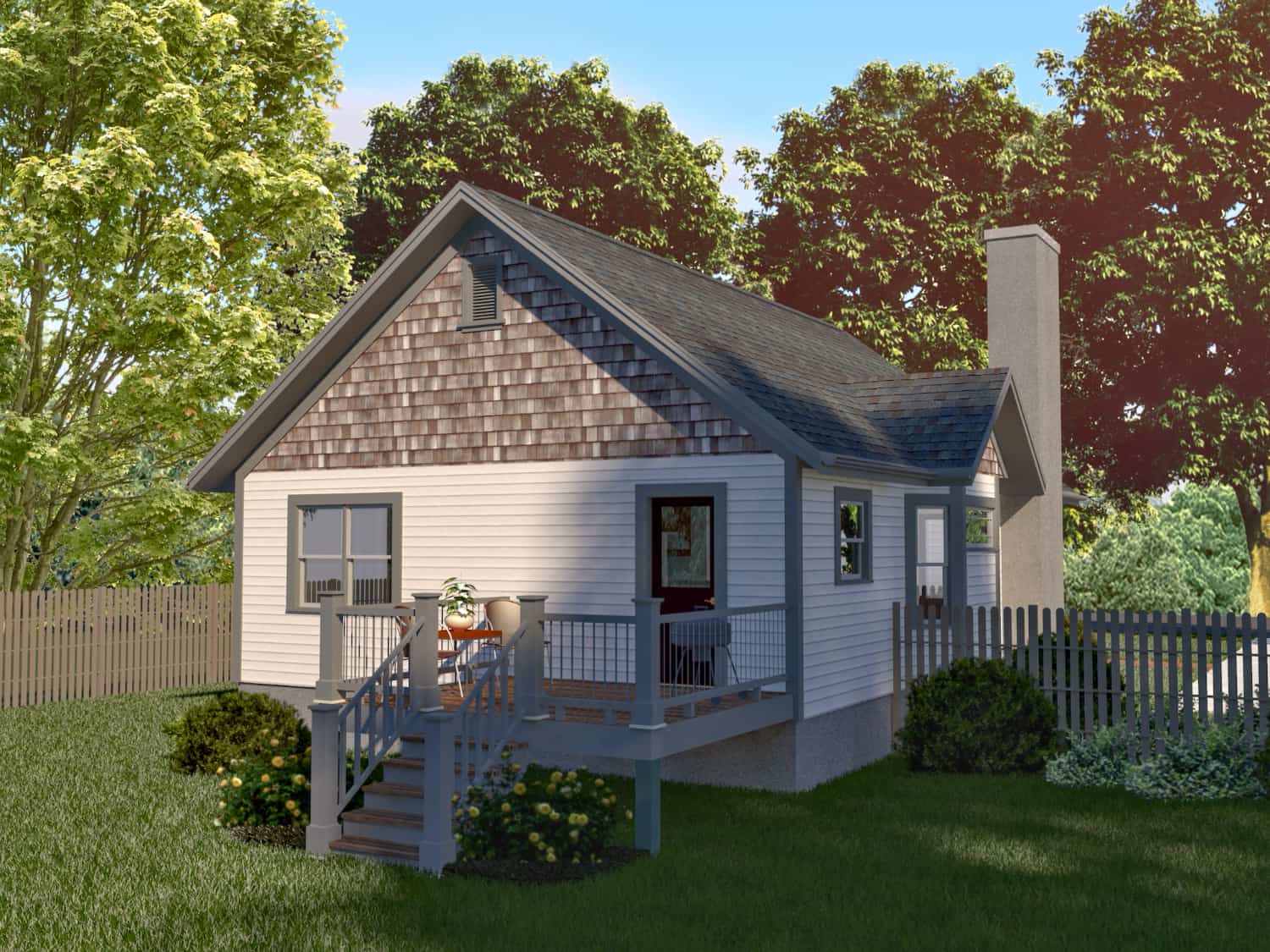

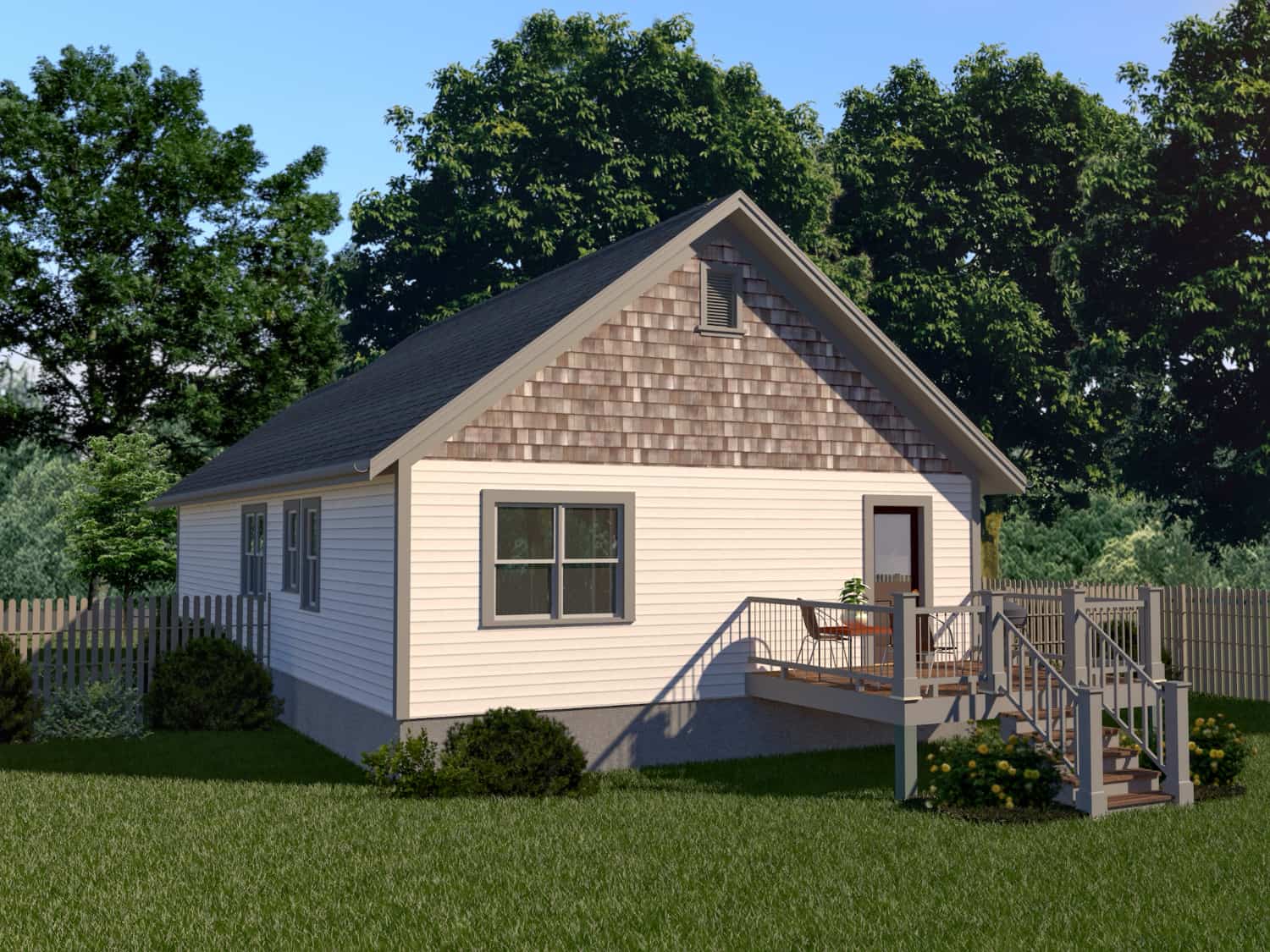

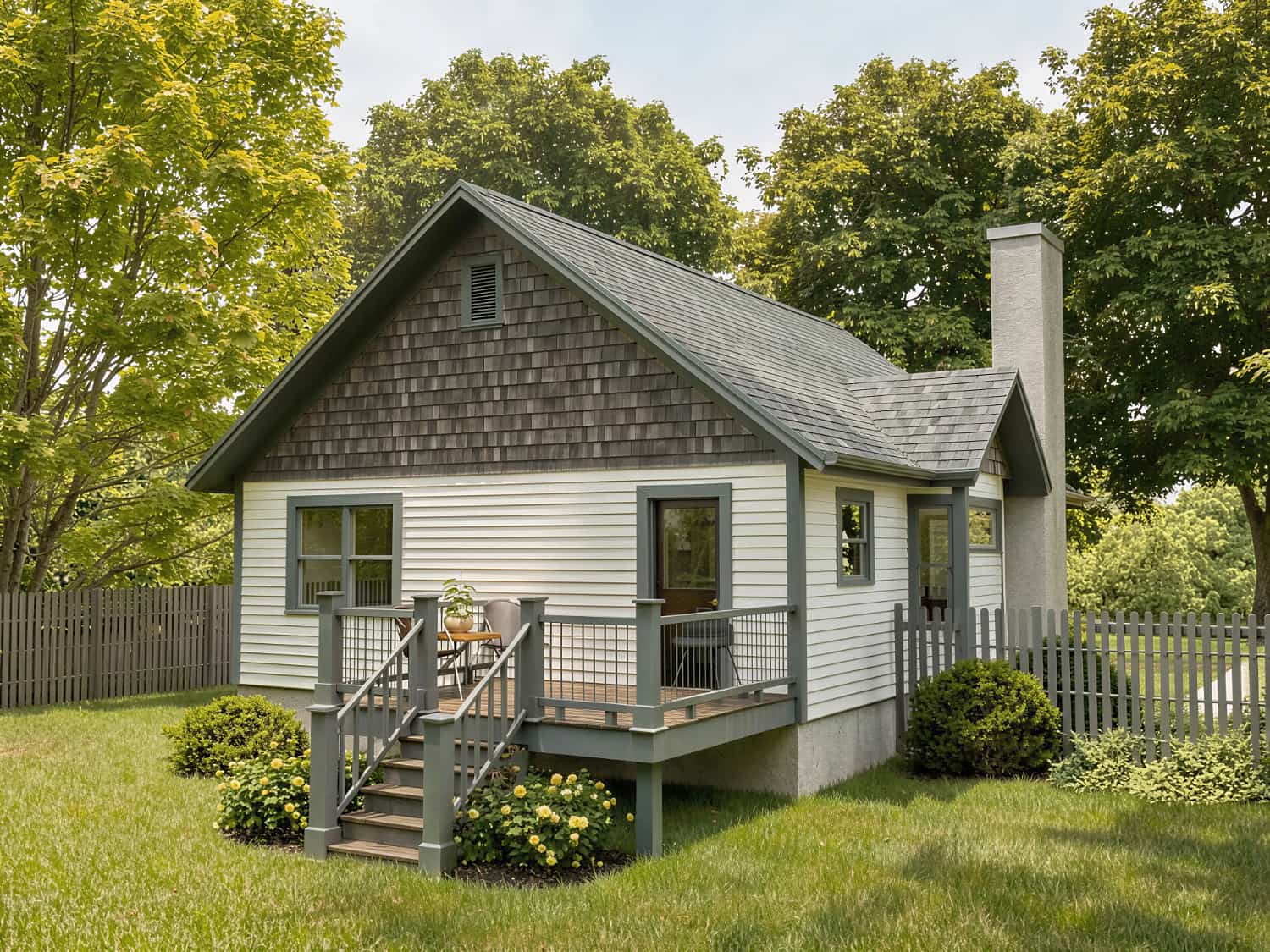

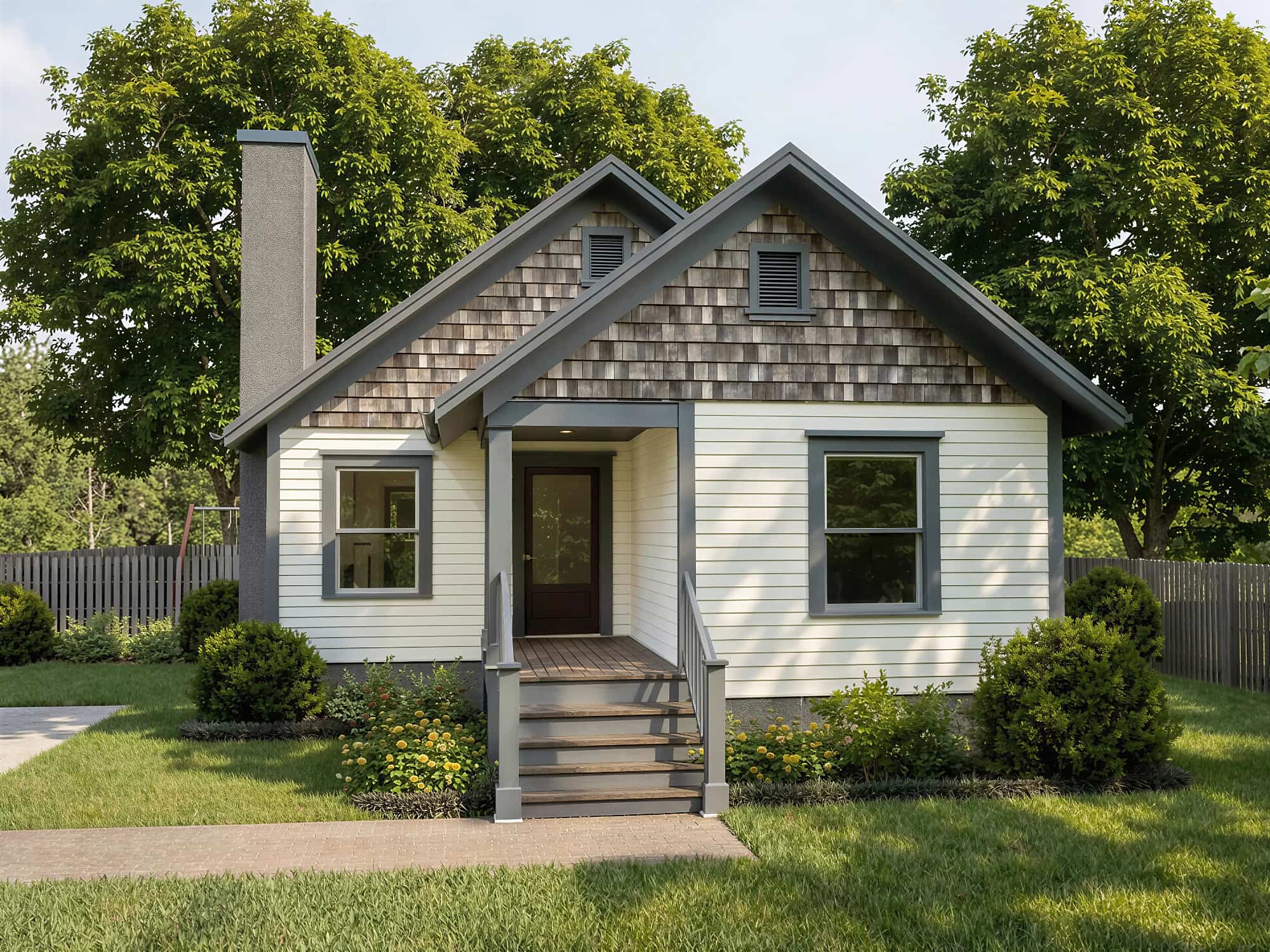

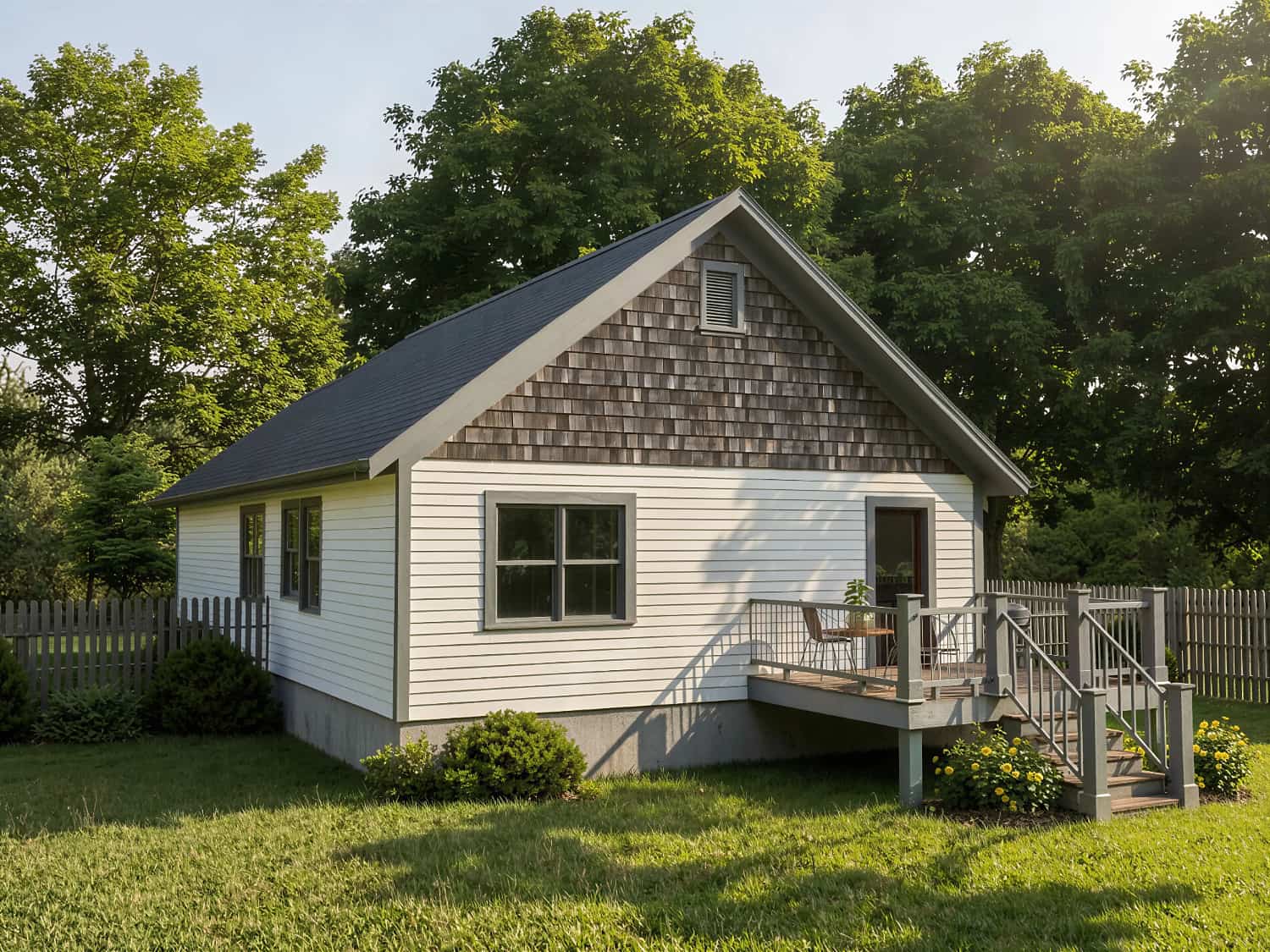

house plan 1101A
- floorplan
& comments - order
plan
See also plan 1206E for a version of this plan that is 2' wider.
The bay at the dining room is cantilevered. The footprint is 26' wide, but the actual structure is 28' including the bay.
